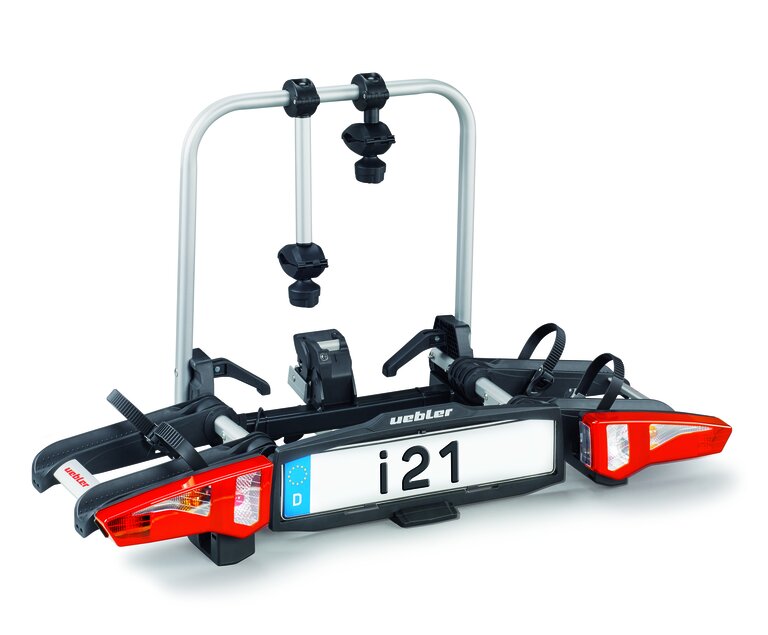

i21 offen
Coupling device bike rack Uebler

i21

  • Number Of Bikes 2
  • Folding angle 60 degrees
  • Foldable
  • No Park Assistance
  • Easy and labour-saving attachment to the towbar with leverless, patented IQ quick-release fastener
  • Patented, removable spacers with single-hand operation
  • New extra-wide wheel rails for tyre widths up to 4.5 inches
  • Foldable wheel rail and lamp unit
  • Ratchet system for securely attaching the wheels to the wheel rail
  • Convenient release of the folding function with foot lever
  • Quick-release lever for fixing the wide carrier frame
  • Simultaneously locking anti-theft device
  • Low unladen weight for high carrying comfort and large payloads

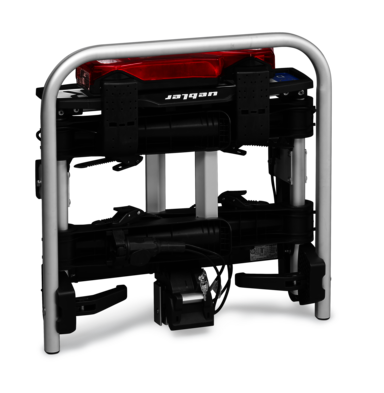

  • i21 gefaltet
  • Small folding measure
  • Extra Simple Montage
  • Tool-free Assembly
  • Anti-theft Device
  • E-Bike compatible
Technical Data i21
Article Nr 15900
Number Of Bikes
How many bikes can be carried on the towbar bike rack.
 2
E-Bike compatible Yes
Dimensions (W H D) 118 x 69 x 56 cm
Dimensions Folded (W H D) 61 x 20 x 60 cm
Weight 13 kg
Max Load
towbar load
The towbar load is an indicator of the weight carrying capacity of the towbar.

The registered towbar load can be found in the vehicle registration certificate under point 13 and has to be stringently observed.

The towbar load always depends on the vehicle and can therefore vary from type to type.

Not relevant for tailgate racks.
 37 kg for BL 50 kg
60 kg for BL 75 kg
Maximum wheelbase of the bike
Describes the distance from the front wheel hub to the rear wheel hub.

NOTE: Depending on the wheelbase of the bike, the hub of the bike may protrude beyond the wheel rail of the hitch carrier.
 130 cm
Tileable with bikes on
60° folding angle: sufficient for almost all limousines, station wagons, SUVs.
 60 degrees
Bike frame diameter up to 75mm round tube
75 x 45 mm oval tube
Bike Anti-theft device / lockable Yes
Trailer Anti-theft device / lockable Yes
Rail Gap
Generally describes the distance from the center of the wheel rail to the center of the wheel rail.
 220 mm
EuroBE / TÜV- and DEKRA-Approval Yes
Max wheel width of the bike
NOTE: Depending on the tire width, it can happen that the tires only stand up on the edges of the bicycle rails.
 2,8“ (ca. 7 cm); 4,5“ (ca. 11,5 cm)*

*with Toothed belt conversion kit for fatbikes (optional)
Quality Product made in Germany Yes

Assembly Instruction i21

Accessories

  • [Translate to English:] Transporttasche /i-Serie für Uebler Kupplungsträger i21
    Transport bag / i-Series i21Article Number 19840
  • [Translate to English:] Auffahrschiene mit Überfahrschiene für Uebler Kupplungsträger der Serien i und F; faltbar; inkl. Tasche
    Drive-on and drive-over ramp (foldable) / series i and FArticle Number 19950

    for Uebler towbar bike rack of series i and F; foldable; including bag

  • [Translate to English:] Abstandshalter mit Zahnband für 1. Fahrrad abnehmbar; abschließbar; mit Carbonschutz; für alle Fahrradrahmen (auch Kastenrahmen) bis 120 x 80 mm
    Bike holder with toothed belt for 1st bikeArticle Number 19960

    removable; lockable; with carbon protection; for all bike frames (including boxsection frames) up to 120x80 mm

  • [Translate to English:] Abstandshalter mit Zahnband für 2. Fahrrad (für 2er-Träger) abnehmbar; abschließbar; mit Carbonschutz; für alle Fahrradrahmen (auch Kastenrahmen) bis 120 x 80 mm
    Bike holder with toothed belt for 2nd bike (for 2-bike rack)Article Number 19970

    removable; lockable; with carbon protection;for all bike frames (including box-section frames) up to 120x80 mm

  • [Translate to English:] Abschließbare Knebelmutter
    lockable twist gripArticle Number 19640
  • [Translate to English:] Abschließbare Knebelmutter
    lockable twist gripArticle Number 19650

Spare Parts

  • [Translate to English:] Schelle für Abstandshalter
    Bracket for bike holderArticle Number Art.-Nr. E1055

    19610, 19620, 19630, 19880, 19890, 19900

  • [Translate to English:] Kennzeichenträger
    Plate holderArticle Number E1863

    i21, i31 (not for DC-type)

  • [Translate to English:] Leuchtenanbindung (Rechts)
    Light arm including lid (right side)Article Number E1866

    i21, i31, i21-DC, i31-DC, F14, F24, F34

  • [Translate to English:] Leuchtenanbindung (Links)
    Light arm including lid (left side)Article Number E1871

    i21, i31, i21-DC, i31-DC, F14, F24, F34

  • [Translate to English:] Rückleuchtenset
    Rear light setArticle Number E1905

    including cable & connector (not for DC-type)

    i21 (60°)
    i21 (90°)
    F14, F24

  • [Translate to English:] Rücklichtglas (Links)
    Rear light glass (left)Article Number E1872

    i21, i21 Z, i31, i31 Z, i41 S, i21-DC, i21 Z-DC, i31-DC, i31 Z-DC, i41 S-DC, F14, F24, F34

  • [Translate to English:] Rücklichtglas (Rechts)
    Rear light glass (right)Article Number E1873

    i21, i21 Z, i31, i31 Z, i41 S, i21-DC, i21 Z-DC, i31-DC, i31 Z-DC, i41 S-DC, F14, F24, F34

  • Rear light setArticle Number E1864

    including lights protector,cable & connector (not for DC-type)

    i21 (60°)
    i21 (90°)
    F14, F24

  • [Translate to English:] Ersatzschlüssel (1 Satz = 2 Stück)
    Spare keys (1 set = 2 pcs.)Article Number E1550

    Please mention your locking number.
